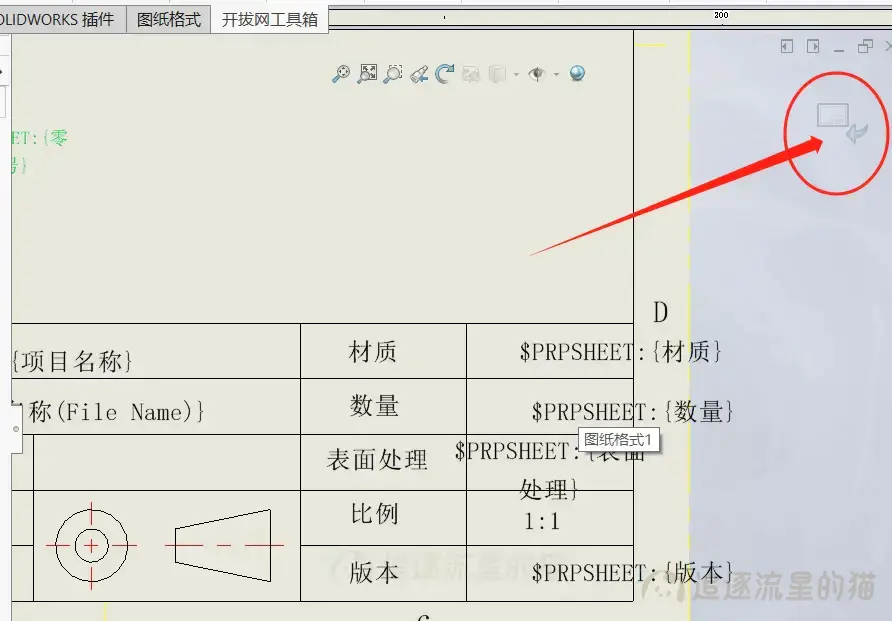

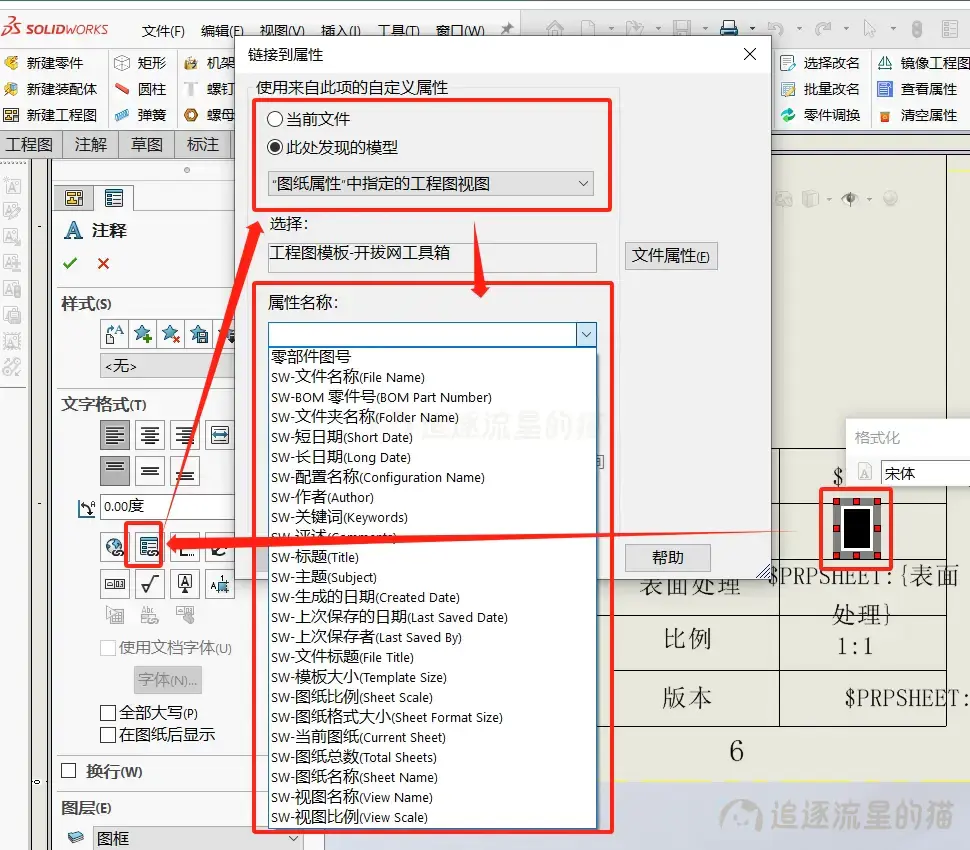

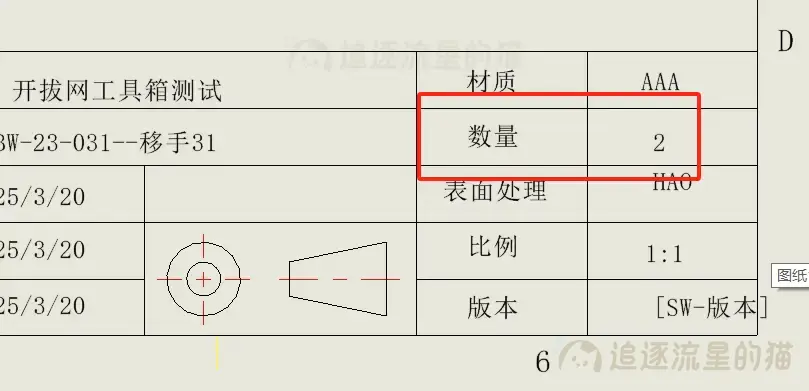

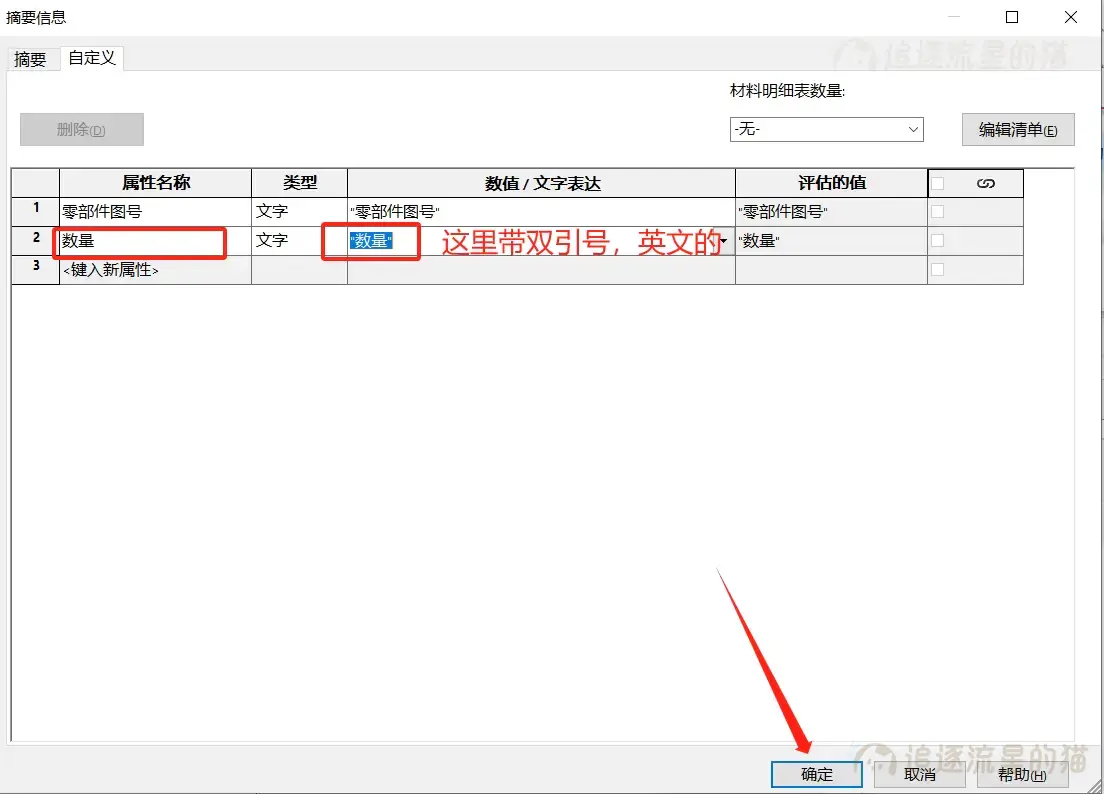

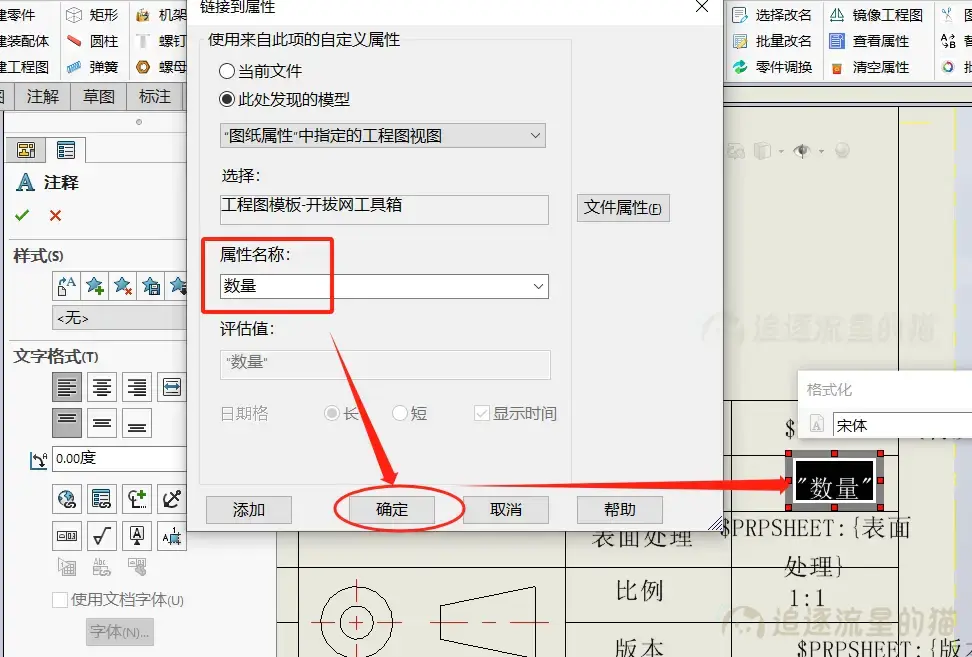

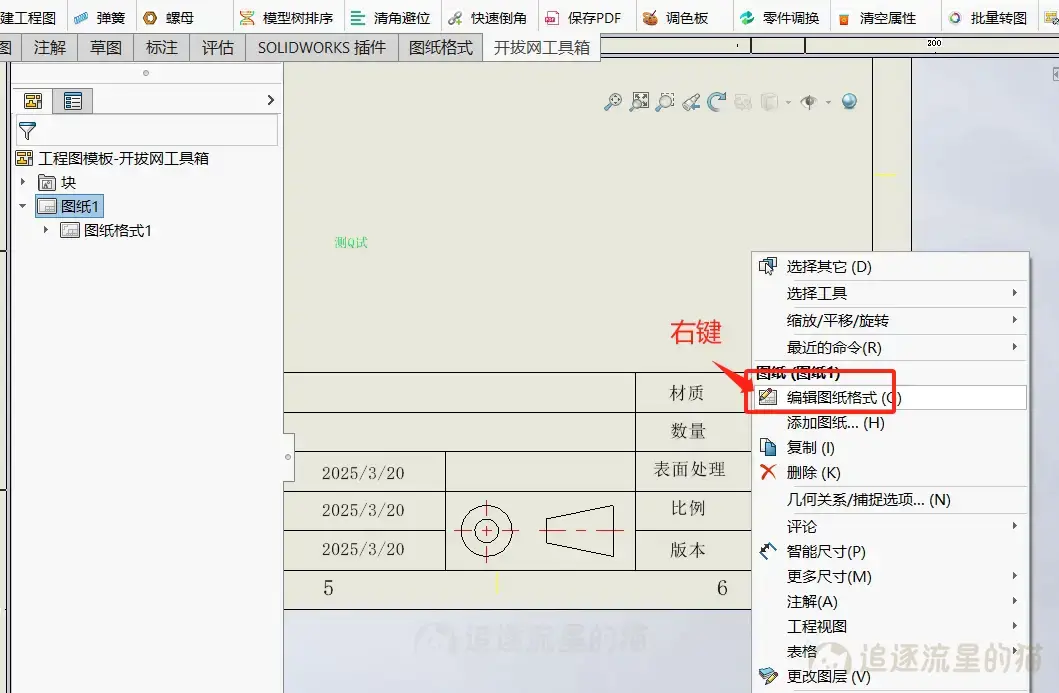

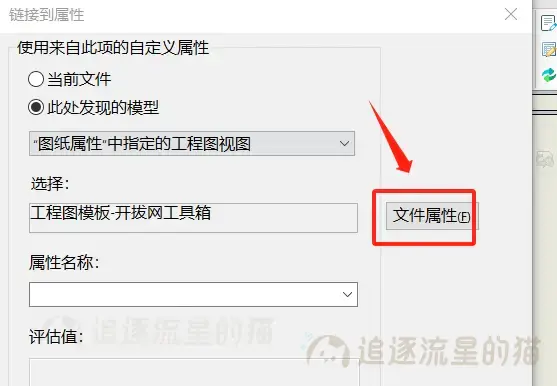

SolidWorks如何在工程图里关联数量等属性？！追逐流星的猫8个月前发布1420SolidWorks如何在工程图里关联数量等属性？！ 经常有人在群里问：如何在工程图关联属性之类的问题，其实这是SolidWorks基础，也是作为SolidWorks使用者的基础功能，今天就来捋一捋“SolidWorks如何在工程图里关联数量等属性？” 1、打开“工程图模板”，右键-编辑图纸格式 2、插入属性名称 3、若没有你要的属性，可以自定义 将“工程图模版”保存一下，关闭模板，即可去出图 4、假如数量这里为空值，说明属性里没写
